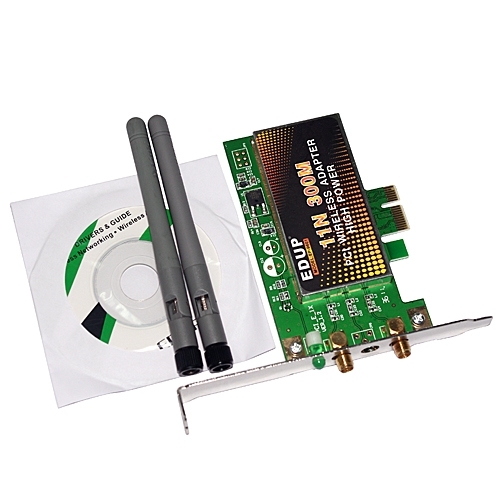

802.11b/g/n 300Mbps Wireless PCI-E LAN Card
Model: EP-9601
Up to 300Mbps downlink and 150Mbps uplink faster speed, EP-9601 is a Wireless-N PCI-E Adapter with IEEE 802.11n (draft) compatible that is fully backward compatible with IEEE802.11g/b standards. Therefore, it is an ideal device for home and SOHO networking to share high speed internet connection, files, printers, and multimedia communications with the flexibility, speed and security you need.
The Wireless-N PCI-E Adapter installs in most desktop or server and lets you put your computer almost anywhere in the building. In order to solve weakness of wireless signal problem, enhanced MIMO technology enables you to very easily extend the range of your wireless network up to 3 times farther wireless range than regular IEEE802.11b/g standard.
This Wireless-N PCI-E Adapter comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, 2000, Vista in either Ad Hoc mode (without an Access Point) or Infrastructure mode (with an Access Point).
WEP encryption and WIFI Protected Access (WPA), and further enhanced with 802.1x authentication security. With drivers and utility available for most commonly used Windows OS. The 2.4GHz 802.11n/g/b Wireless-N PCI-E Adapter is a truly solid-design networking device that provides you with the ultimate freedom of wireless networking anywhere.
A setup wizard is provided as the part of the web configuration utility. You can simply follow the step-by-step process to get your wireless-N PCI adapter configuration ready to run in few easy steps.
Provides two methods of operation: Infrastructure and Ad-Hoc
Adopts MIMO technology for wireless rates of up to 300Mbps
Adopts CCA technology which automatically avoids channel conflicts using its channel selection feature
Quick Secure Setup, complies with WPS for worry free wireless security
Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
Simple Configuration and monitoring
Supports Roaming technology, guaranteeing efficient wireless connections.
Supports Windows 2000/XP/Vista, Linux and MAC OS X
Specifications:
Wireless Standards
IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface
32-bit PCI-E Rev.2.3 interface
Data Rate 802.11n: up to 300Mbps (downlink) and 150Mbps (uplink)
802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band
2.4GHz ISM (Industrial Scientific Medical) Band
RF Frequency
2412 ~ 2462 MHz (North America)
2412 ~ 2472 MHz (Europe)
2412 ~ 2484 MHz (Japan)
Radio Channel
1 ~ 14 channels (Universal Domain Selection)
Range Coverage
Up to 3 times farther range than 802.11g
Antenna type
Two Detachable Antennas
Roaming
Full mobility and seamless roaming from cell to cell
RF Output Power
14 ~17 dBm (Typical)
Modulation
11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Data Security
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network
Auto-switch to use 802.11n or 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function
Configuration & Management
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista
Media Access Control
CSMA/CA with ACK
LED Indicator
Link/Act
Operating System
Windows 2000, XP, Vista , Linux and MAC OS X
Weight
50g
Dimension
120 (L) x 65 (W) x 15 (H) mm (PCBA)
Environment
Operating Temperature: 0oC to 55oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Compliant
FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant
Package include:
1 x 300Mbps PCI-E Wireless LAN Card with Antenna
1 x CD driver
1 x User Guide
