Description:
Features & Descriptions:
System
OS
Embedded Linux OS
System security
Three level user authority management
Online users
Support 4 online visitors simultaneously?
DDNS
Free DDNS?
Control protocol
ONVIF 2.4 protocol, high interoperability
Processor
Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
Reset
Long press for 15 seconds to restore back to factory settings
Collection
Image sensor
1/4inch 720p Progressive scan CMOS sensor
CMOS
Support AWB, AGC, BLC
Imaging area
4.40mm×2.52mm
SNR
≥41dB
Minimum illumination
0.8Lux/F1.４（colourful model ）,0.3Lux/F1.（B&W mode）
Lens/viewing angle
3.6mm@F1.４/56.14?
Night vision
Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
IR control?
IR turned on: night vision view enabled, infrared Ray, ICR auto detect.???????????????????????????????????????????????????????????? IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.?
Video
Compression Format
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding process
Multi-stream：720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
Resolution?
720p/VGA/QVGA
Bit Rate
CBR/VBR, output bit rate range：128～4096kbps
Max.Frame rate
25fps
Picture Adjustment
Contrast, brightness, saturation, chroma are adjustable.
Audio
Input
Built in -48dB Microphone?
Output
Built in speaker(8Ω1Ｗ)`
Sampling frequency / width
8KHz/16bit
Compression format
ADPCM/32kbps
Network
Interface
10Base-T / 100Base-TX, RJ45 connector?
Network Protocol
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF.etc.
WIFI
WiFi802.11b/g/n
Antenna
3dBi antenna，stronger signal, more stable
Wireless network security
One key setup WiFi ,don`t need network cable .
Storage
Storage mode
Local storage / client storage
Interface
Micro SD/TF,support 64G TF record.
Pan-Tilt
P/T
Pan:270°,Tilt:80°
Preset Postion?
Support up to 15 preset postions?
Limit method
Software limit position, more accurate preset positions,lower Pan Tilt failure rate.
Alarm
Motion detection
Support motion detection
Alarm action
Video upload via email/FTP server，Mobile App alarm?
Physical index
Rated Voltage
DC5/2A±0.3V
Power comsumption
Rated power：3.0Ｗ(IR ON)
Working environment
Working Temperature：-20～70℃，Working Humidity 90%
Weight
Gross Weight：330g （Note: in kind prevail）
Housing material
ABS plastics
Camera size
145 x 110 x 125 mm (L×W×H)
Installation
Wall mounting, ceiling mounting

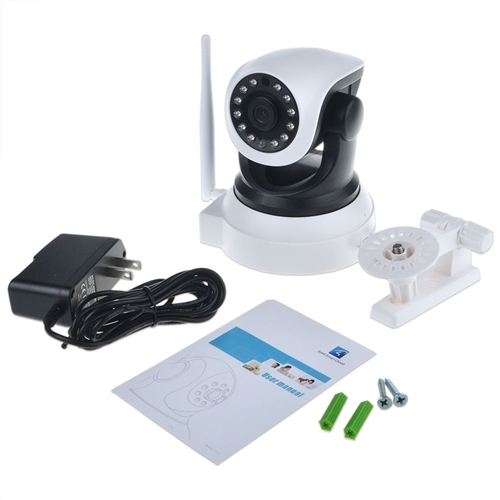

Package included：
1 x Wireless 720P Pan IP Camera
1 x Instruction Manual
1 x Power Adapter
1 x Bracket
1 x Screw bag
