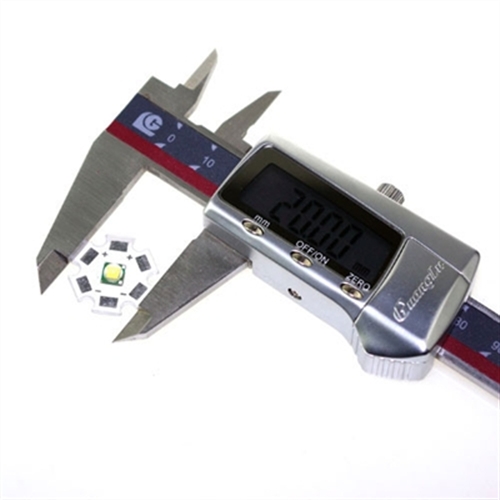

Cree XML T6 White Color 10W LED Emitter Bead Mounted On 20mm Star PCB

  • Item #135000063 ( date added:12/5/2014 , 248 customers visited )
  •  (Write a review)
  • Retail price: US$ 11.91

    Our Price US$:  9.16

  • Start from: 1 Unit(s)
  • Lowest Price Guaranteed >>
    Email Your Friend This Page >>

      Express Check Out US$:9.16

      If you buy only one single item, check out right here.
      It usually takes only less than 24 hours to ship out your order with FREE gift box, direct from our multi wearhouses. You will mostly get your order within 1-10 business days, the exact delivery time are based on the freight service you choose when you check out, e.g. (UPS,US Post Office). For International shipping outside USA, the delivery time may vary.
  • US$ 9.16   + Shipping Cost
    Start from:  Unit(s)

  • Contact Us

    info@LinkedNew.com
    or
    visit support forum


Description:

Product description:
The XLamp XM-L LED is the industry’s highest performance, single-die white lighting-class LED. XLamp XM-L is 20% more efficient than XLamp XP-G at the same current, and can deliver 1000 lumens with 100 lumens per Watt efficacy. The XLamp XM-L LED offers Cree’s industry-leading features: wide viewing angle, symmetrical package, unlimited floor life and electrically neutral thermal path.
XLamp XM-L LEDs can enable LED light into new applications that require tens of thousands of lumens, such as high bay and high-output area lighting. XM-L is also the ideal choice for lighting applications where high light output and maximum efficacy are required, such as LED light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting.

Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125`
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path

Technical Parameters:
Quantity:2pcs
Model Type: Cree XML-T6
Emitted Color :White
Color Temperature: 5700-6100K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Intensity Luminous (Iv): 280-975LM
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path

Package include:
1 x Cree XML T6 White Color 10W LED Emitter Bead Mounted On 20mm Star PCB
