Description:
Features:
1)100% brand new and high quality
2) Dual-band handheld transceiver with display function menu on the display "LCD".
2) DTMF Code
3) Lithium-ion battery with high capacity
4) Commercial FM radio receiver (65 MHz ~ 108MHz)
5) Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable
6) Built-in VOX Function (voice operated transmission)
7) Alarm Function
7) High &Low Power Switchover
8) Battery Saving
9) Wide/Narrow Band Selection
10) Display illumination and programmable keyboard
11) Time-out Timer (TOT)
12) Voice Prompt
13) ANI Code
14) Programmable by PC
16) PTT-ID
17) ATUO Keypad Lock
18) Function “beep” on the keyboard
21) Built-in RX CTCSS/DCS scan
22) Low Battery Warning
23) U/V Cross Band Dual Watch
24) LCD Function
25) Built-in LED flashlight
26) Level Threshold “Squelch” adjustable from 0~9
27) Cross band reception
28) Tone end of transmission
29) Built-in key lock
Specifications:
Frequency Range | 65MHz-108MHz(Only commercial FM radio reception) |
VHF: 136-174MHz(Rx/Tx) | |
UHF: 400-480MHz(Rx/Tx) | |
Memory Channel | Up to 128 channels |
Frequency stability | 2.5ppm |
Frequency step | 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz |
Rated Voltage | 7.4 V |
Battery Capacity | 1800mAh |
Work Temperature | -20 ℃ to +60℃ |
Antenna Impedance | 50 Ω |
Consumption in standby | ≤ 75mA |
Consumption in reception | 380mA |
Consumption in transmission | ≤1.4A |
Mode of Operation | Simplex or semi-duplex |
Duty cycle | 03/03/54 min. (Rx/Tx/Standby) |
Dimension | 110x58x32mm |
Weight | 130g (approximate) |
RF power | 4W/1W |
Type of modulation | FM |
Emission class | 16kΦF3E / 11kΦF3E (W/N) |
Maximum deviation | ≤ ±5kHz / ≤ ±2.5kHz (W/N) |
Spurious emissions | <-60dB |
Sensitivity | 0.2 µ V (at 12dB SINAD) |
Inter modulation | 60dB |
Audio Output | 1000mW |
Adjacent channel selectivity | 65/60dB |

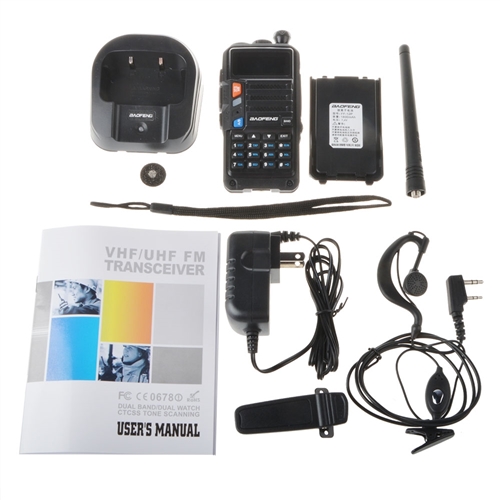

Package included:
1x FF-12P Radio
1X 7.4V 1800mAh Li-ion Battery
1x Antenna
1x Belt Clip
1x Battery Charger
1x Hand Strap
1x Earphone
1x User’s Manual
