MINI HDMI to SDI SD-SDI HD-SDI 3G-SDI Converter HD 1080P Video Converter

  • Item #126000257 ( date added:5/27/2015 , 4 customers visited )
  •  (Write a review)
  • Retail price: US$ 56.84

    Our Price US$:  43.72

  • Start from: 1 Unit(s)
  • Lowest Price Guaranteed >>
    Email Your Friend This Page >>

      Express Check Out US$:43.72

      If you buy only one single item, check out right here.
      It usually takes only less than 24 hours to ship out your order with FREE gift box, direct from our multi wearhouses. You will mostly get your order within 1-10 business days, the exact delivery time are based on the freight service you choose when you check out, e.g. (UPS,US Post Office). For International shipping outside USA, the delivery time may vary.
  • US$ 43.72   + Shipping Cost
    Start from:  Unit(s)

  • Contact Us

    info@LinkedNew.com
    or
    visit support forum


Description:

Introduction:
The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

Features:
Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Do Not support Broadcast Standard

Specifications:
Input Port: 1 x HDMI
Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution: 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power Supply: DC 5V -12V
ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
Dimension: 82*45*25mm
Net Weight: 105g
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption (Max):5W

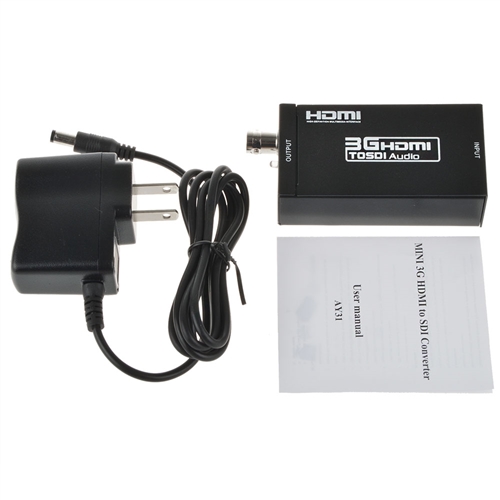

Package:
1x3G HDMI to SDI Converter
1xDC Power Supply Adaptor (US)
1xOperation Manual
Operation controls and Functions

SDI-OUT: This slot is where you connect the SDI display with coaxial cable .
POWER LED: This red LED illuminate when the device is connected with power supply.
DC IN: Plug the 5V-12V DC power supply into the unit.
HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
