Features:
5V 20A Single Output Switch
Widely ranged input voltage , steady & precise output voltage
Full load burn-in test.
Over current, over voltage, short circuit protection.
Low output ripple and yawp.
Technical Specifications:
Input voltage: AC100-120V; 200-220V
Input frequency: 50/60hZ
Input Inrush Current: COLD START 30A/115VAC 60A/230VAC
Output voltage: 5V
Output current: 20A
Output voltage adjustment range: 4.75~5.5V
Protections: overload/ over voltage/ short circuit
Connection:

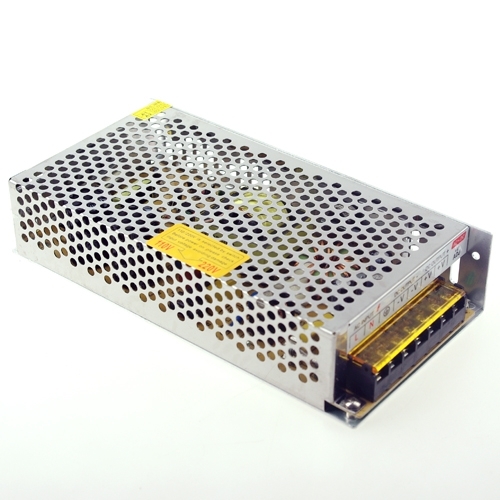

From the photo, you can see there are 7 ports.
From right to left, L/N/G is for AC input..
"L" port be connected to the AC : Live ..
"N" port be conected to the AC : Natural ..
"G" port be connected to the AC : Ground..
Two V+ ports is for the DC positive..
Two V- is for the DC negative..
Package Include:
1 x DC 5V 20A Switching Power Supply 100V-240V
