Description:
Descriptions:
BAOFENG UV-5RE+Plus,is a micro-miniature multiband FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability VHF/UHF DUAL-BAND (DUAL DISPLAY, DUAL STANDBY) TWO WAY RADIO:
Frequency Range: 136-174 / 400-480MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power: 4 /1Watts
128 Channels
50 CTCSS and 104 CDCSS
Built-in VOX Function
1750Hz Burst Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
High /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver, EMERGENCY ALARM
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz
ROGER SET
Item number UV-5RE Plus
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480HZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain Dual Band antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension （W x H x D） 100 x 52 x 32 mm
Weight 250g（including battery, antenna）
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation ＜5kHz(Wide) / ＜2.5kHz(Narrow)
Spurious Radiation ＜7μW
Adjacent Ch. power <=-65dB(Wide) / <= -60dB(Narrow)
Pre-emphasis characteristics 6dB
Current <=1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion ＜10%

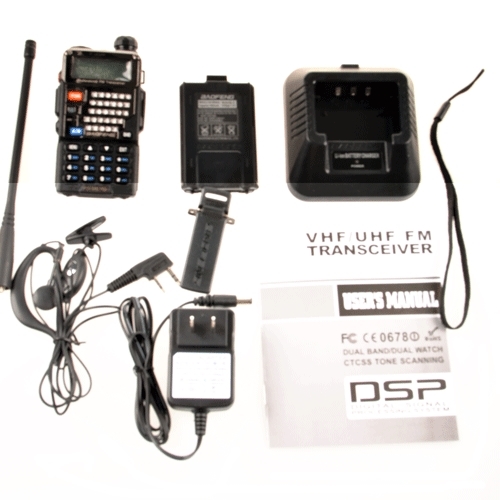

Package include:
1 x BAOFENG UV-5RE+Plus
1 x Li-ion Battery Pack
1 x SMA-FEMALE PLUG Dual Band Antenna
1 x Belt Clip
1 x ENGLISH Manual
1 x Desktop Charger
1 x PTT Earpiece
Product Reviews:
- Great value!, , Tuesday, April 01, 2014
By Kirk Wilson
| I`m new to Ham radio, but I am impressed with this radio. It transmits and receives clearly and the battery seems to last quite a bit longer that I expected. It`s not "feature rich" but for about $50 it`s small, light, and gets the job done... and that is exactly what I was looking for. |
- why i could not reset, Saturday, September 13, 2014
By enright
| i bought this and verified with baofengradio.com , it is authorized seller, the problem is seems this raido could not be reset, if reset, all prestored channels are gone. you need to set it one by one, i talked to linkednew, they asked me to buy cdrom and usb cable for it. however it is chinese version, linkednew said they will ask baofeng to make youtube about how to reset it. anywy, just dont reset the raido. i m satisfied linkednew exchanged a new one for me . |
