Descriptions:

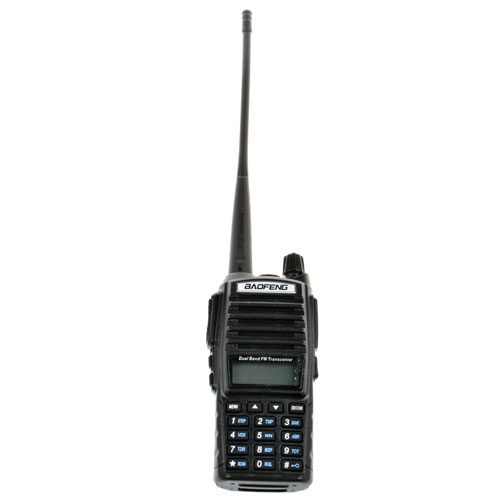

The latest radio to come from Baofeng! This radio has upped the bar on ham radio technology! Compared to previous Baofeng products (UV-5R and the UV-B Series) this radio comes with a much louder speaker (1 watt!), a more solid design with larger buttons, and a better antenna. This radio can be programmed with or without a PC to also work on private repeater systems. (Save thousands compared to a Motorola / Kenwood setup)
Product Features:
25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz)
Large LCD Display
LED Flashlight
Hight /Low RF Power Switchable
Voice companding
50 CTCSS/ 104DCS coder & tone searching
dual standby
PC programmable
Wide/Narrow Band(25kHz/12.5kHz)
Transmitter time-out timer(TOT)
High/Low TX power selectable
Busy channel lock-out(BCLO)
Specification:
General
Frequency Range: 65-108MHz(FM Receive only),136-174MHZ and 400-520MHZ (TX/RX)
Channel No: 128
Frequency Stability: ±2.5ppm
Antenna: High gain DualBand antenna
Antenna Impedance: 50Ω
Operating Voltage: DC 7.4V
Mode of operation : Simple or semi-duplex
Antenna: SMA -Female
Earpiece / mic type: Kenwood Plug type
Dimension(W x H x D): 132 x 60 x 35 mm (not included antenna)
Weight: 238g(including battery, antenna)
Power adapter: Input: AC100-240V, 50-60Hz;Output: DC10V/500mA;
Plug Type: US
Transmitter:
Output power: 5W / 1W (Max 5W)
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation: 7μW
Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: ≤1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ≤10%
Package include:
1x BAOFENG UV-82 Dual Band FM Transceiver
1x 7.4V/1800mAh BL-8 Battery
1x Antenna
1x Power Adapter
1x Hand Strap
1x Battery Charger
1x User Manual
