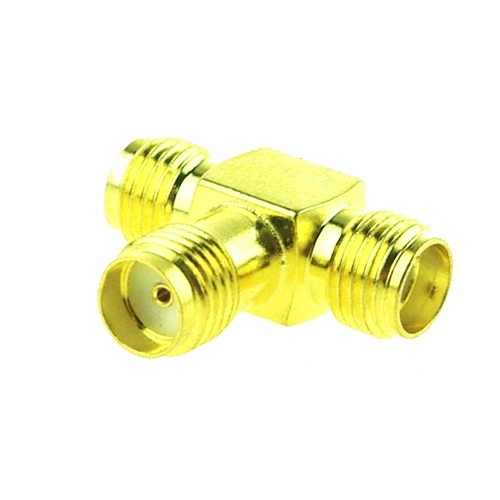

Descriptions: 2X RP-SMA Jack , Female pin T type Technical characteristics APPLECABLE STANDARD MIL-C-39012;
SMA female to two SMA female in serie RF coaxial adapter connector
Material:Metal
Category Connectors, Interconnects Family Coaxial, RF Adapters Series IN-Series Convert From (Adapter End) RP-SMA Plug , Female Socket Convert To (Adapter End) Impedance 50 Ohm Style Material Brass Features - Plating Goldplated Mounting Type Free Hanging (3 way)
Temp.range...................-65~ +165 (PE Cable -~ +85)
Vibration...................... MIL-STD-202,Method 213
Impedanec......................50Ω
Frequency Range..............DC~12.4GHz(0~18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Contact resistance
Center Contact................≤3mΩ
Outer Contact.................≤2mΩ
Insulation resistance.......≥5000 mΩ
Insertion loss ................≥0.15 dB/6GHz
VSWR Straight...............≤1.10+0.002f
≤1.05+0.001f
Right angle .............≤1.20+0.003f
≤1.10+0.001f
Durability(mating)...........≥ 500 (cycles)
MATERIAL & PLATING
shell brass goldplated
inner conductor beryllium or tin brass goldplated
insulator PTFE
crimping suite copper alloy nicked or goldplated
o-ring sealing 6146 silastic
CECC 22110;
IEC 60169-15
1 x SMA adapter RP-SMA Plug Female to 2 RP-SMA Jack female adapter 3 way RF connector
